Cantilever Umbrellas

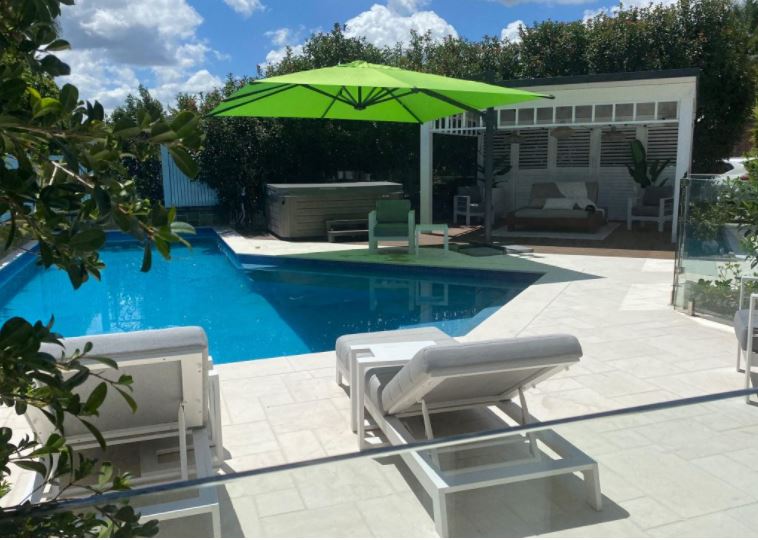

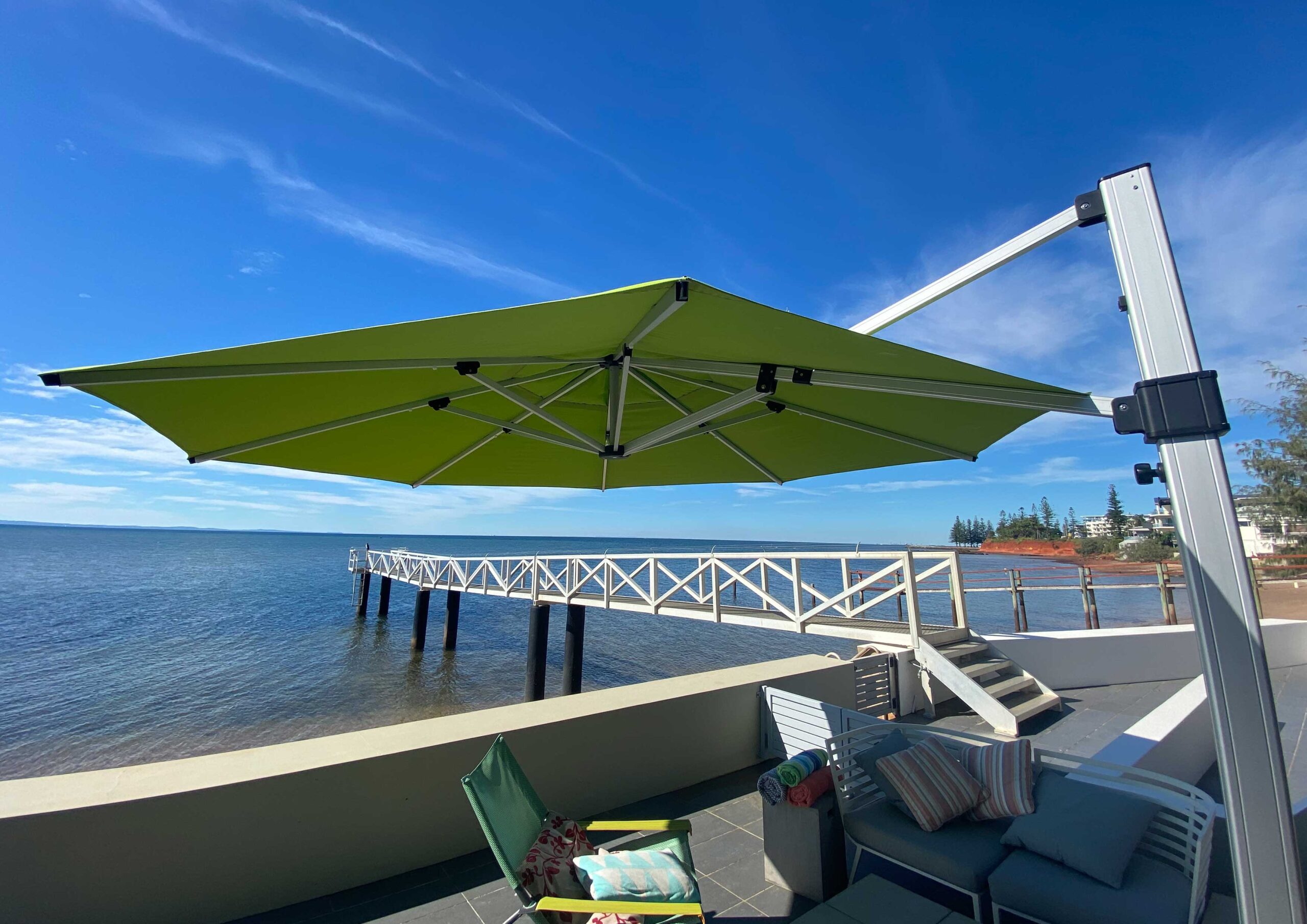

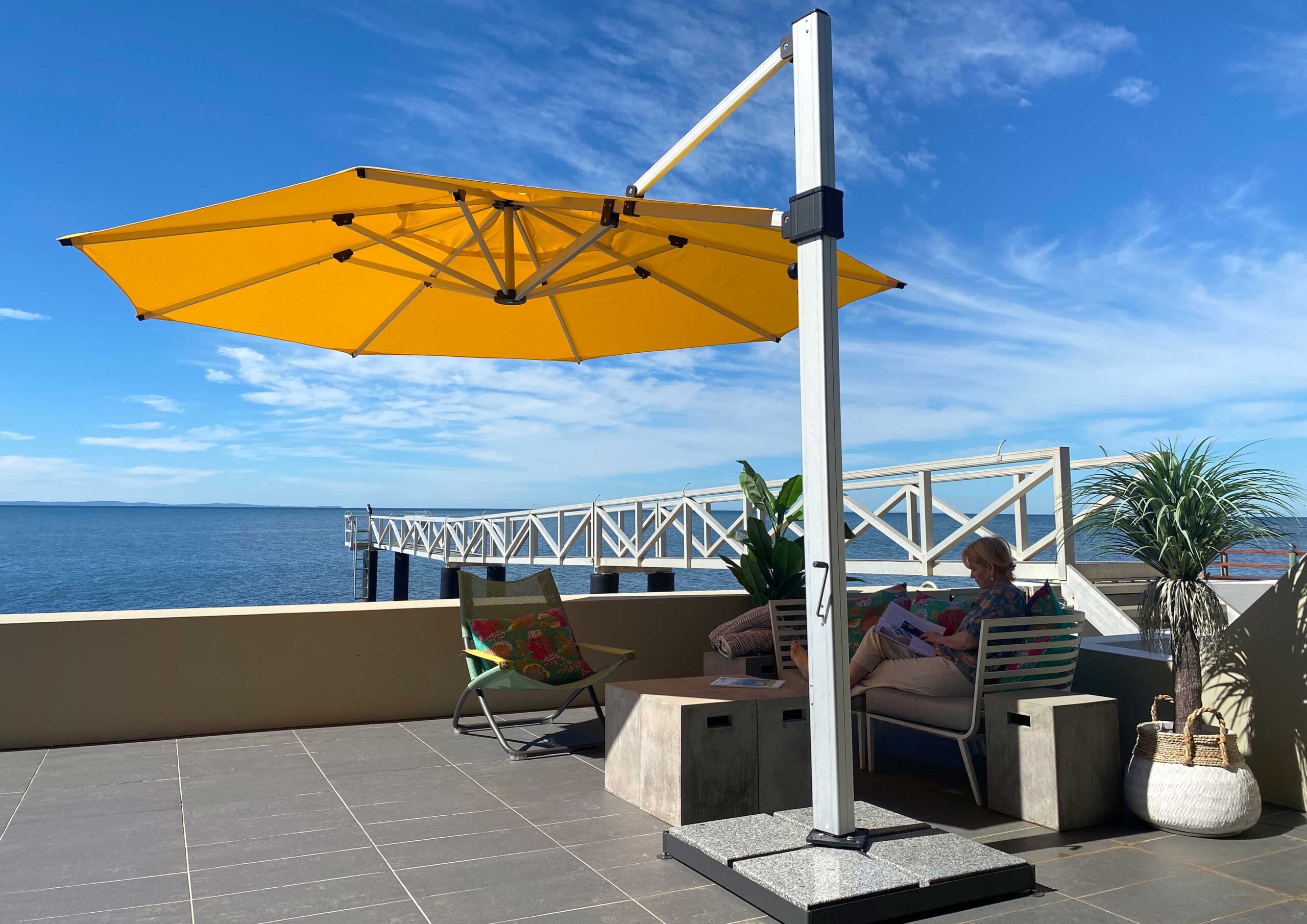

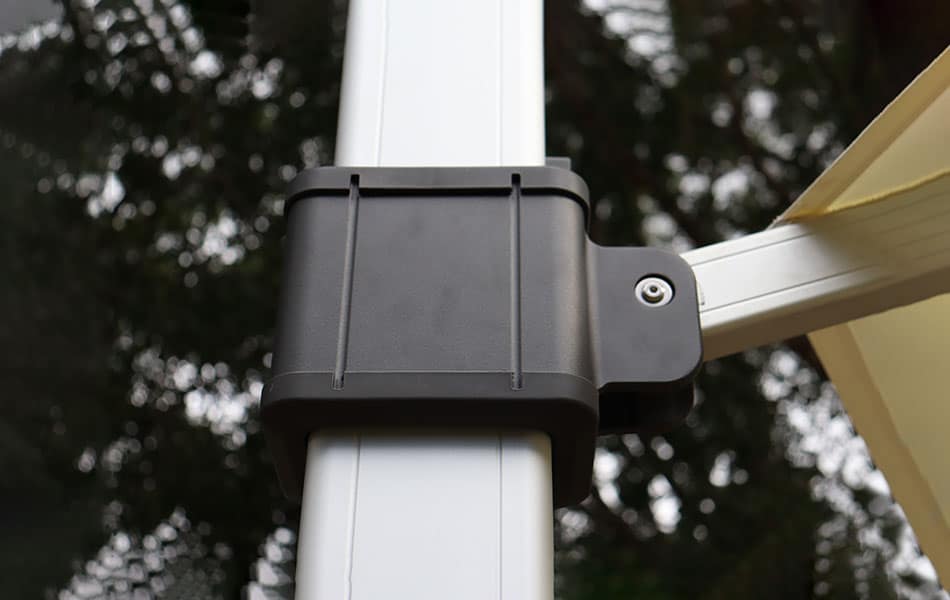

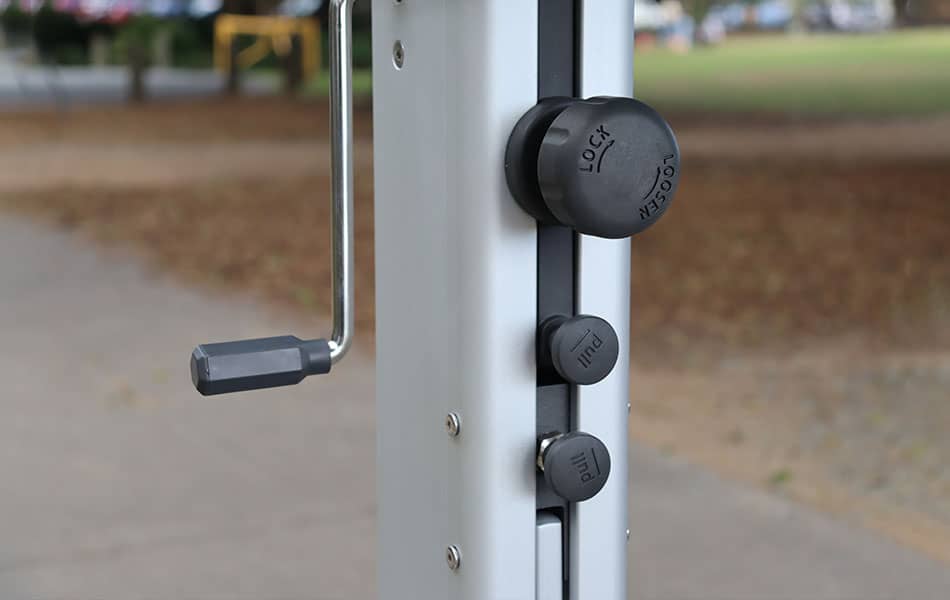

Flare Shade Cantilever Umbrellas are the perfect outdoor shade solution when you need to “move your shade.” Cantilever umbrellas have a unique function that normal umbrellas lack. The Flare Shade Cantilever umbrella is designed with a side-placed support frame which counter balances the canopy. The side mounted pole, which is fixed onto a bearing base plate, allows the canopy to swing fully through a 360 degree rotation. The canopy can also be tilted at a range of angles. This technology allows you to adjust your shade in just about any way you desire. Cover yourself cooking at the barbecue for a while, then swing the canopy over, delivering cool shade where your guests are seated.

The Flare Shade cantilever umbrella has been engineered for strength and long term durability. Additionally designed for visual appeal and manufactured for ease of use, the Flare Shade Cantilever umbrella canopies are crafted from Flare Shades own branded Acrylic fabric.

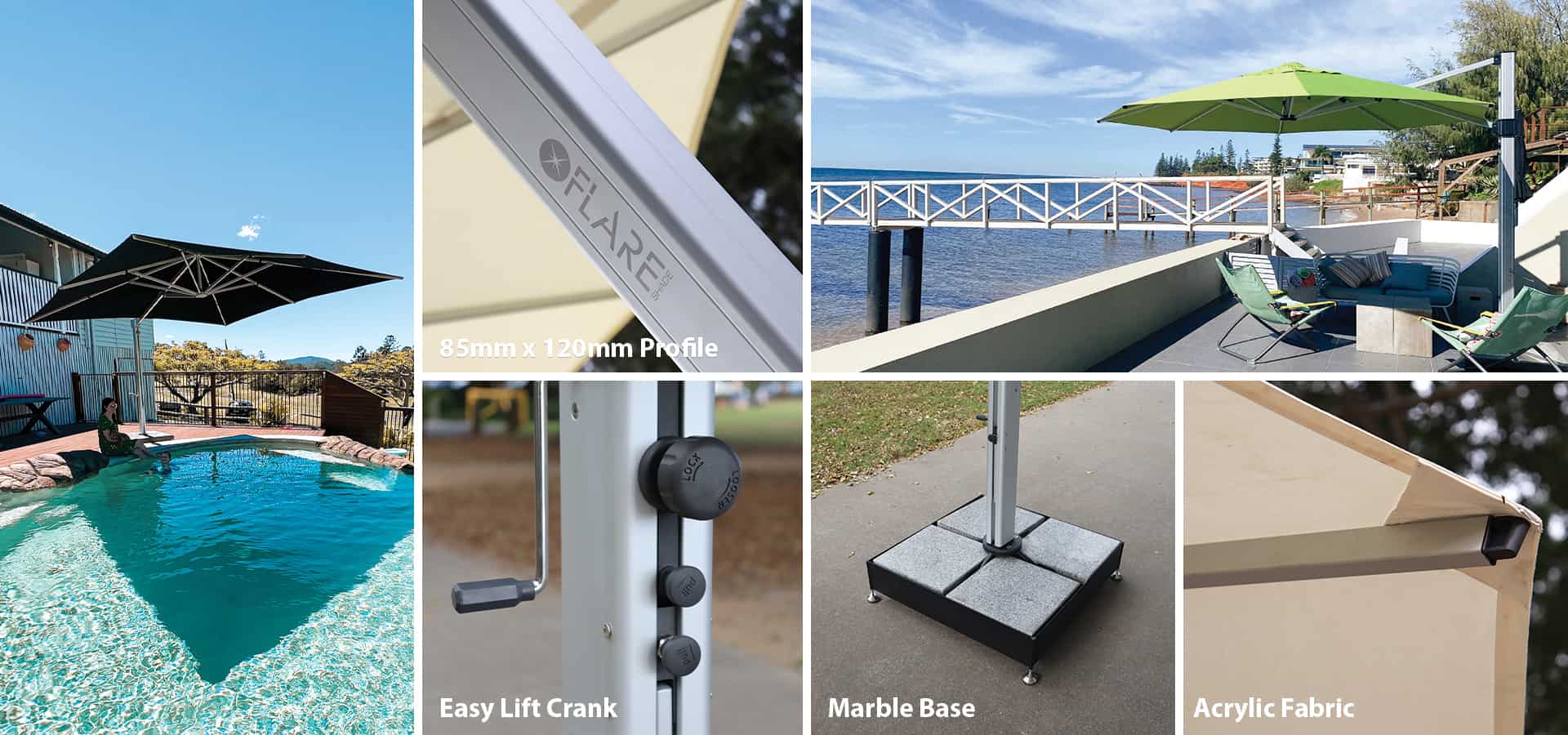

cantilever feature info gallery grid desktop 1920px

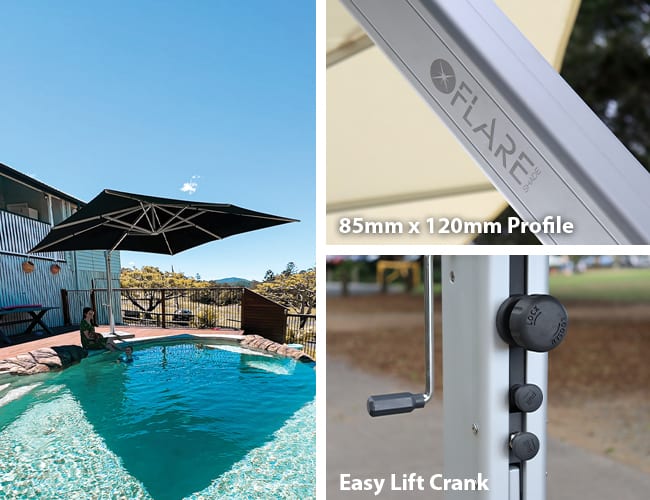

cantilever feature info gallery grid mobile 650px

Sizes

3.5m x 3.5m

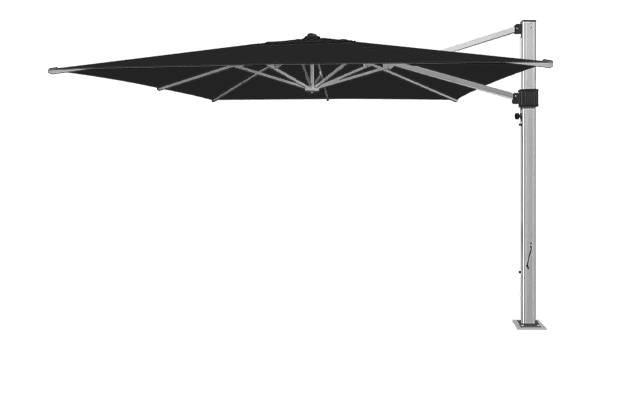

3.5m x 3.5m Square Cantilever

FROM $4,525

Specifications

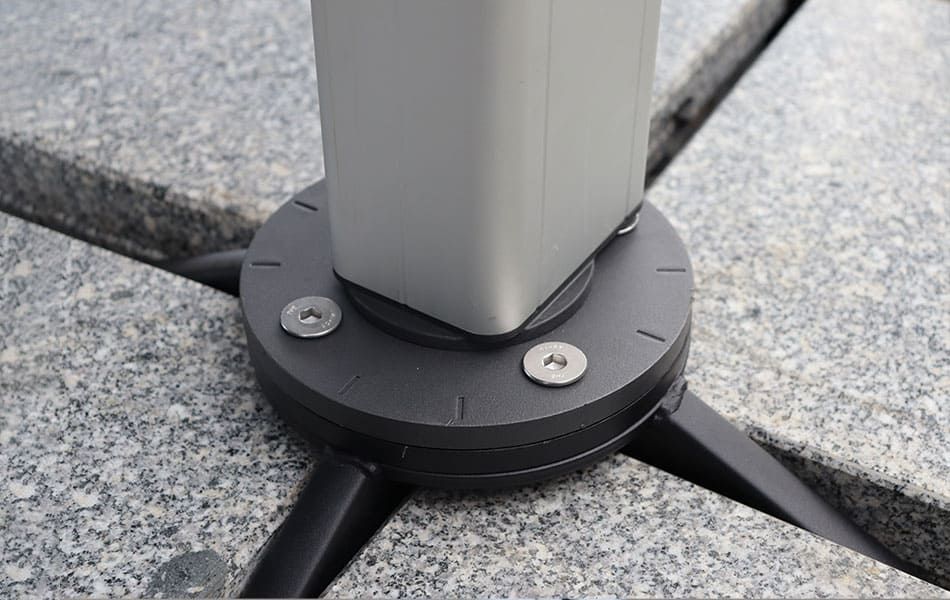

Frame: Aluminium | Height Opened: 2.83m | Height Closed: 2.83m | Clearance Opened: 2.20m | Clearance Closed: 80cm | Main Pole: 8.5cm x 12cm | Support Bar: 5.5cm x 3.5cm | Rib Size: 2cm x 3cm | Roof Diameter Open: 5.7m | Roof Closed: 56cm x 30cm | Packing Box: 25cm x 56cm x 296cm | Frame Weight: 55kg |  Roof Weight: 4kg | Base Plate:  Steel Base with DynaBolts & Square Frame base with 12x Marble Weight Plates (16kg ea. total weight 220kgs)

Fabric
Plain and Printed Fabric Flare Shade Acrylic 260GSM

Warranty
Flare Shade Acrylic 5 Years Fade Resistant | Aluminum Frame 1 Year

Resources
Specifications  |  Instructions  |  Acrylic Fabric Colours  |  3.5×3.5m Template  |  Engineer Certification 3.5×3.5m

4m x 4m

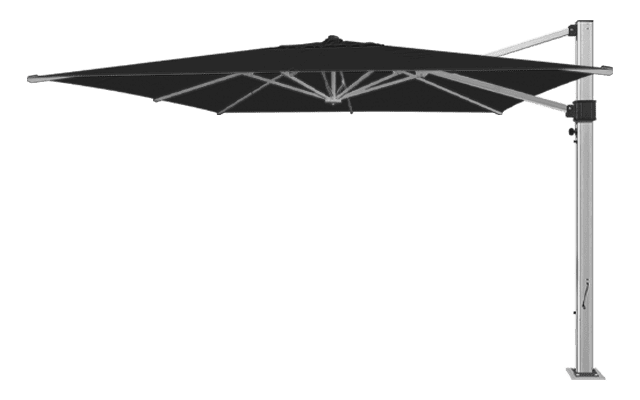

4m x 4m Square Cantilever

FROM $4,745

Specifications
Frame: Aluminium | Height Opened: 2.83m | Height Closed: 2.83m | Clearance Opened: 2.20m | Clearance Closed: 80cm | Main Pole: 8.5cm x 12cm | Support Bar: 5.5cm x 3.5cm | Rib Size: 2cm x 3cm | Roof Diameter Open: 5.7m | Roof Closed: 56cm x 30cm | Packing Box: 25cm x 56cm x 296cm | Frame Weight: 59kg |  Roof Weight: 5kg | Base Plate:  Steel Base with DynaBolts & Square Frame base with 12x Marble Weight Plates (16kg ea. total weight 220kgs)

Fabric
Plain and Printed Fabric Flare Shade Acrylic 260GSM

Warranty
Flare Shade Acrylic 5 Years Fade Resistant | Aluminum Frame 1 Year

Resources
Specifications  |  Instructions  |  Acrylic Fabric Colours  |  4x4m Template  |  Engineer Certification 4x4m

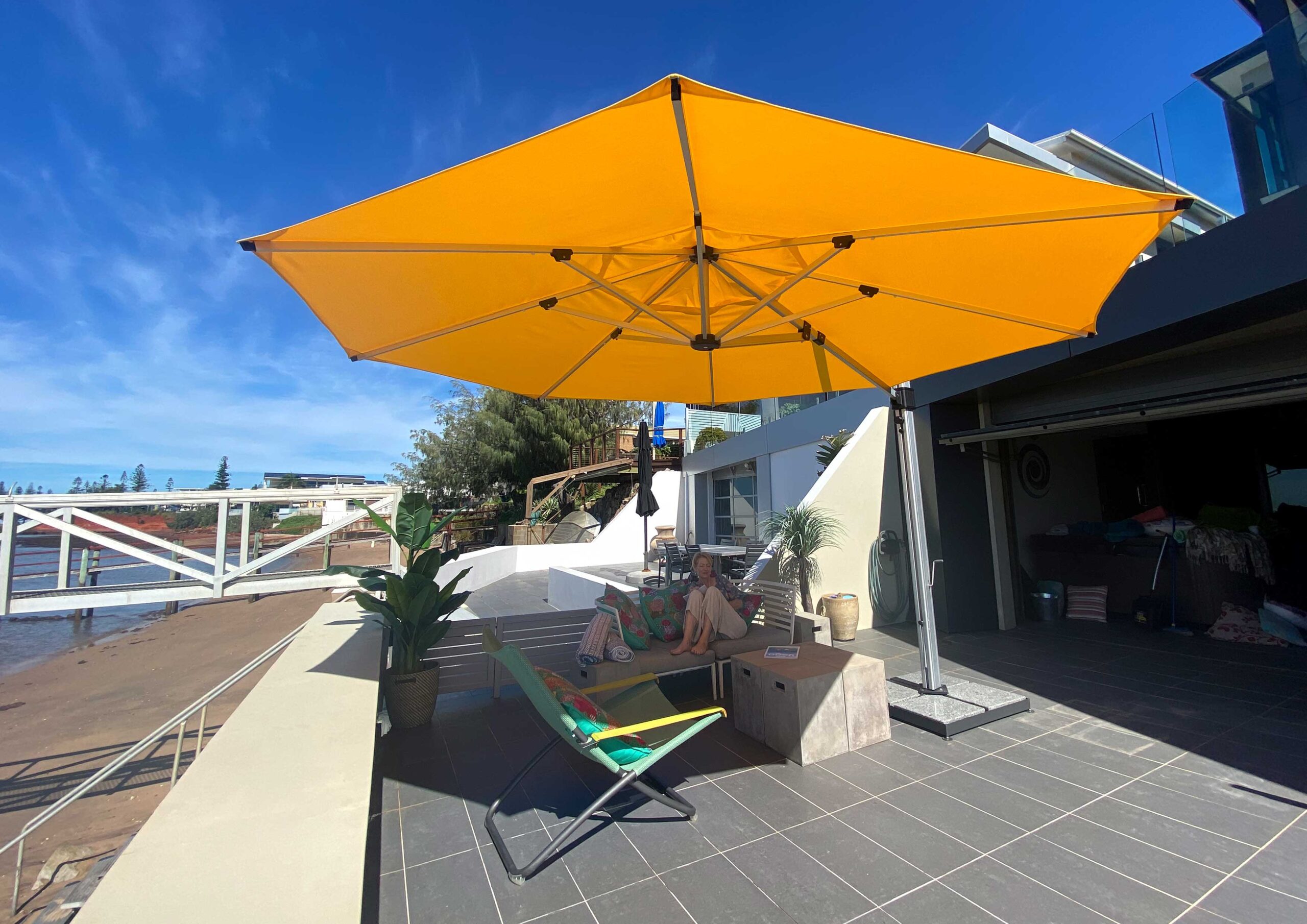

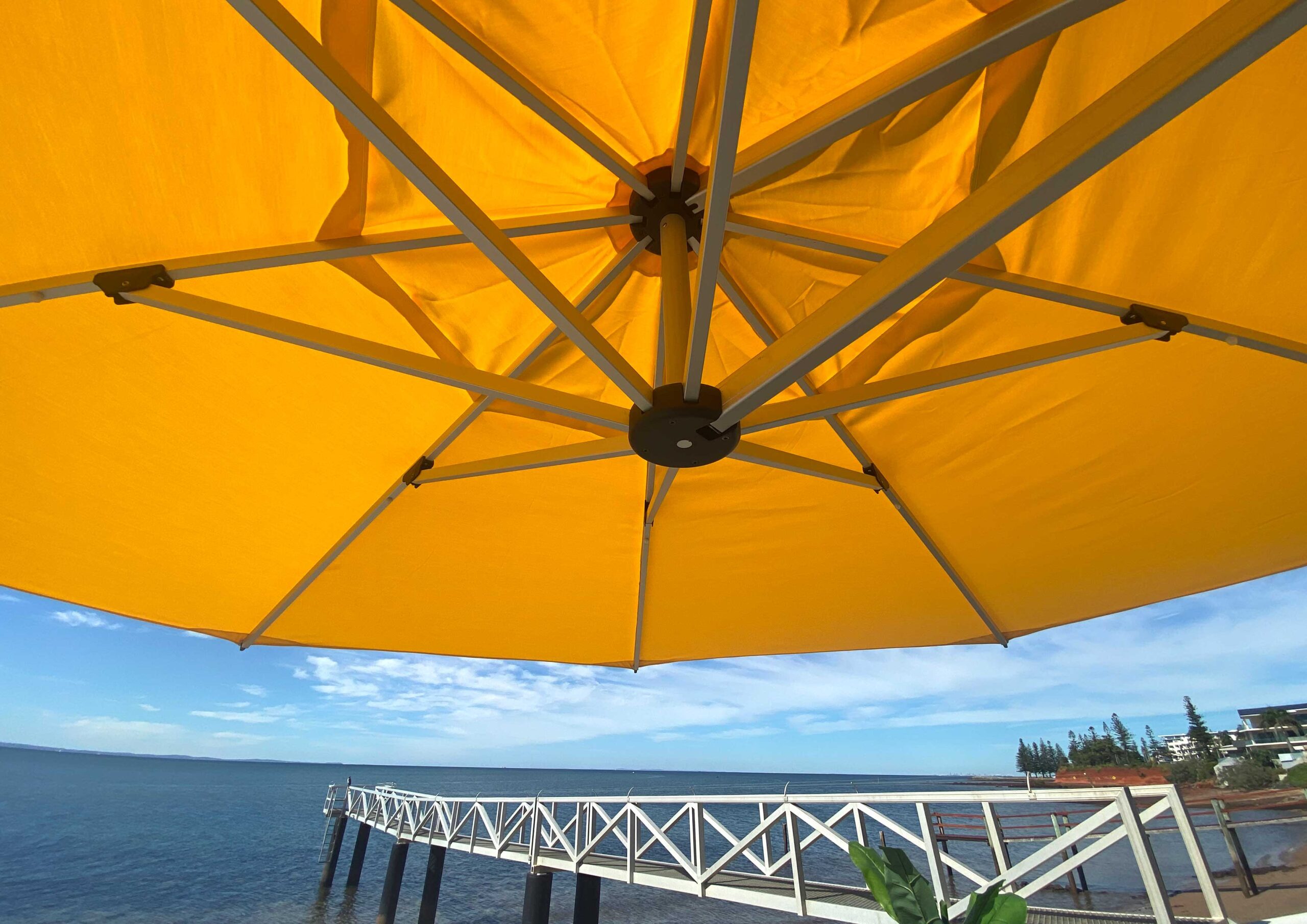

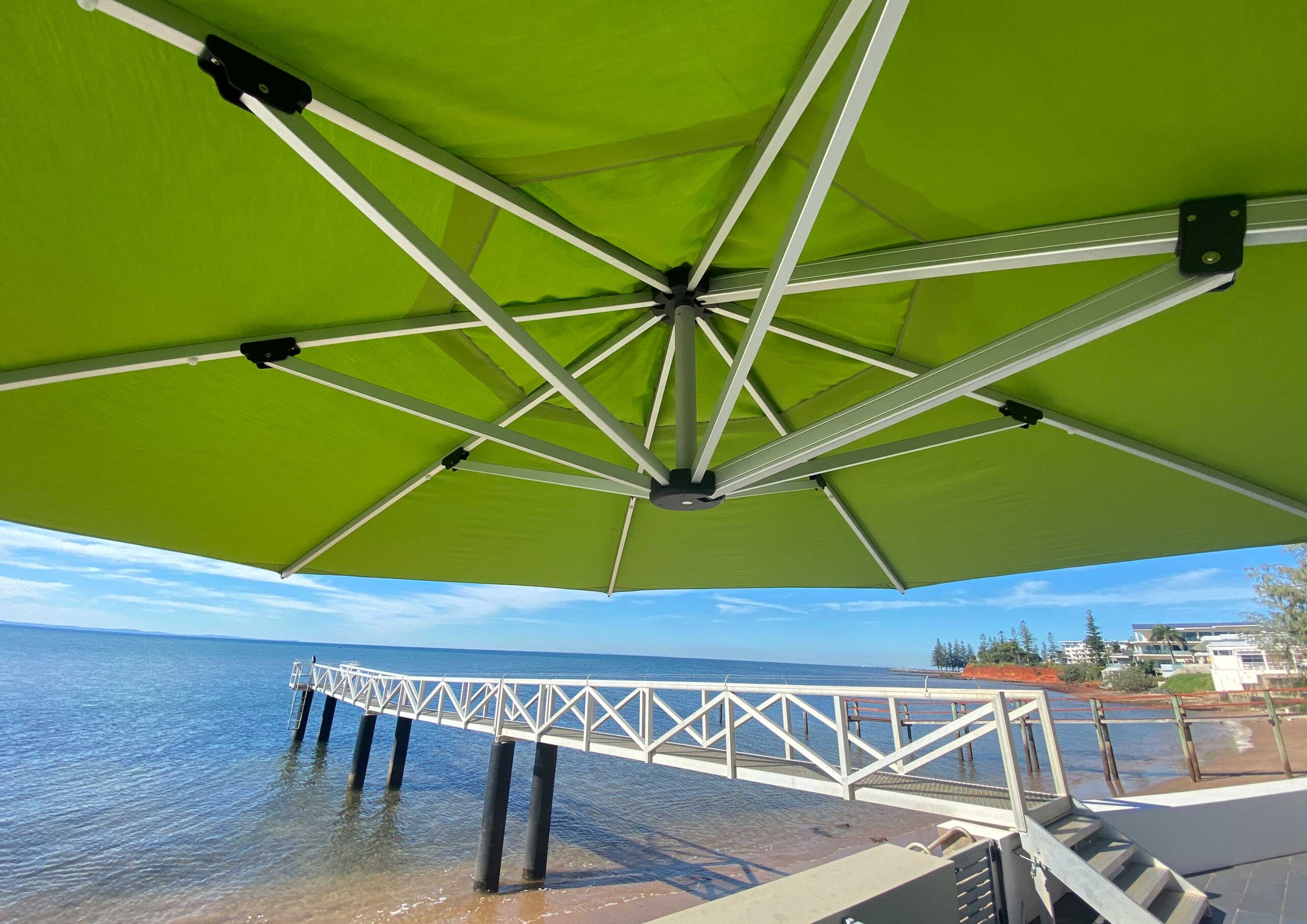

4m dia.

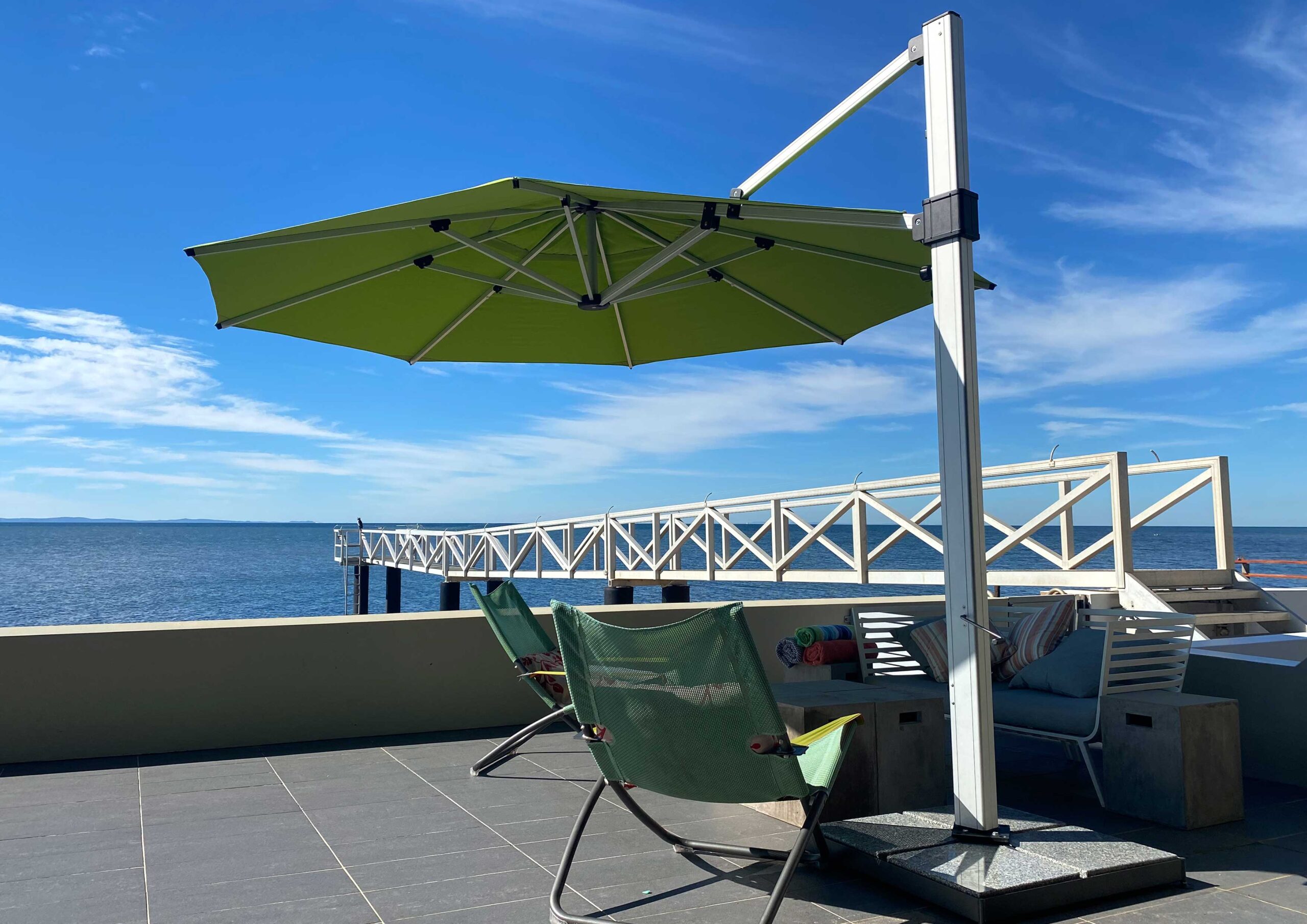

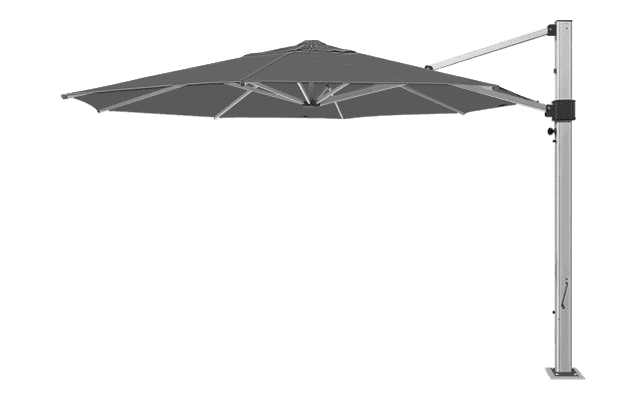

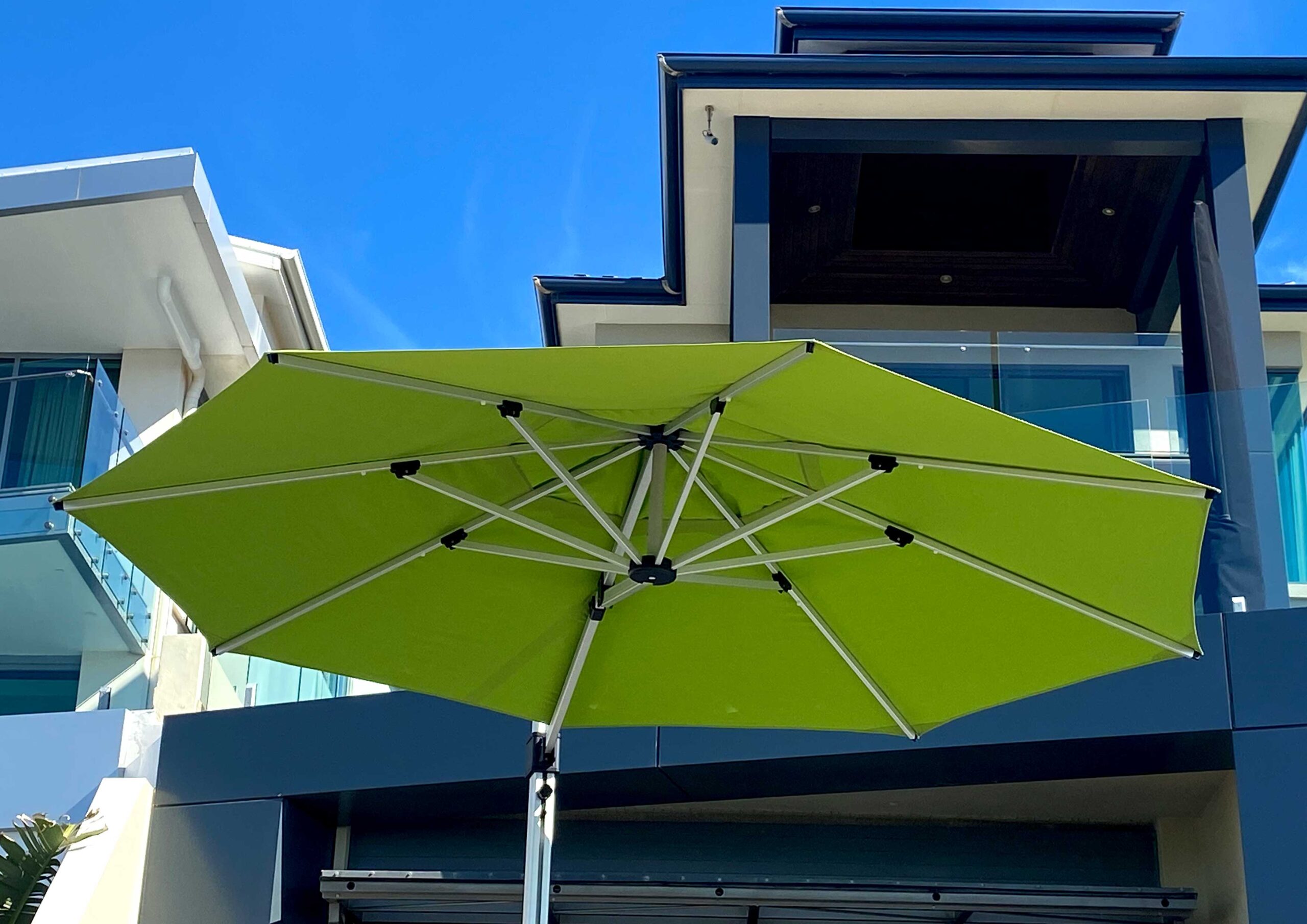

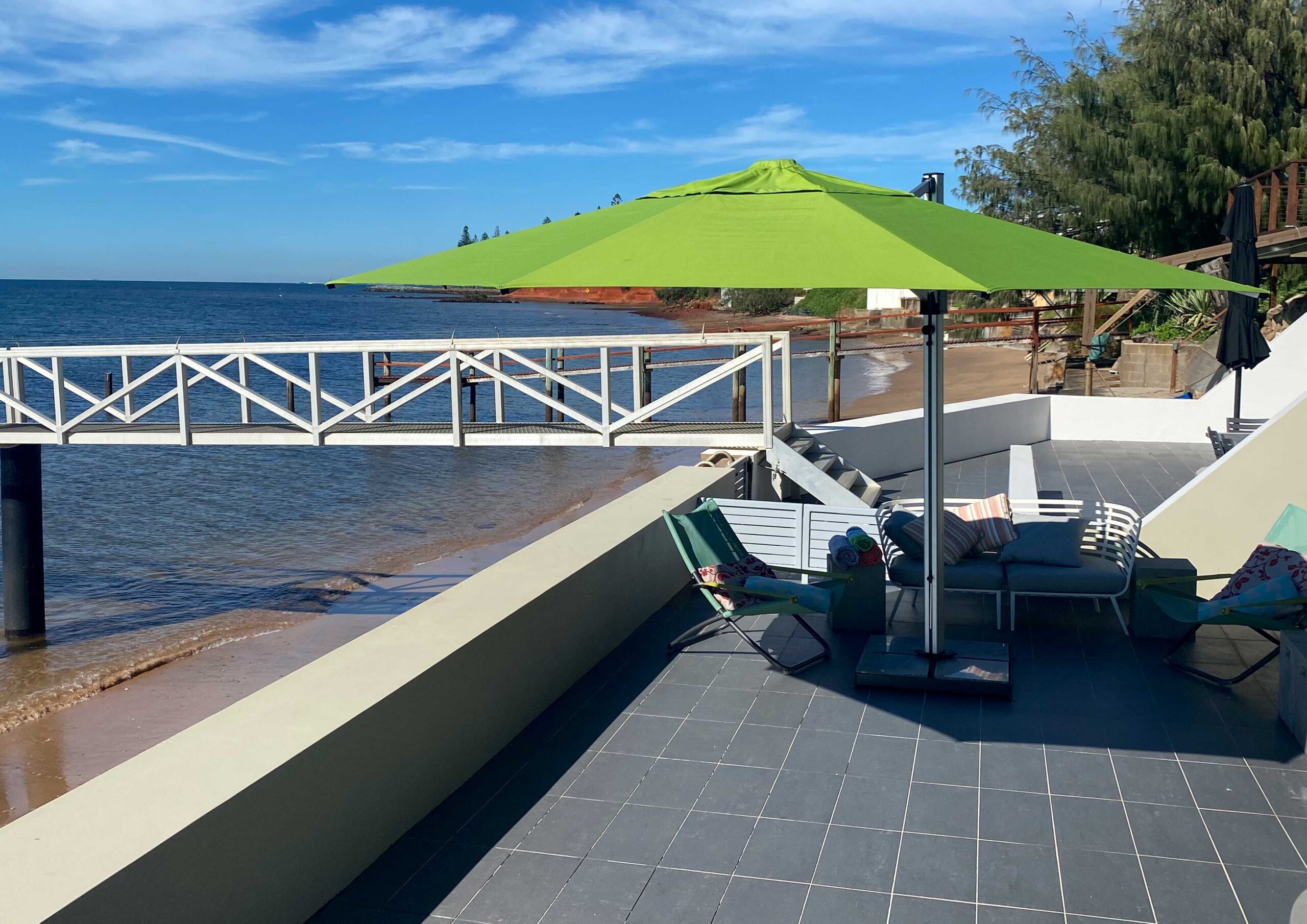

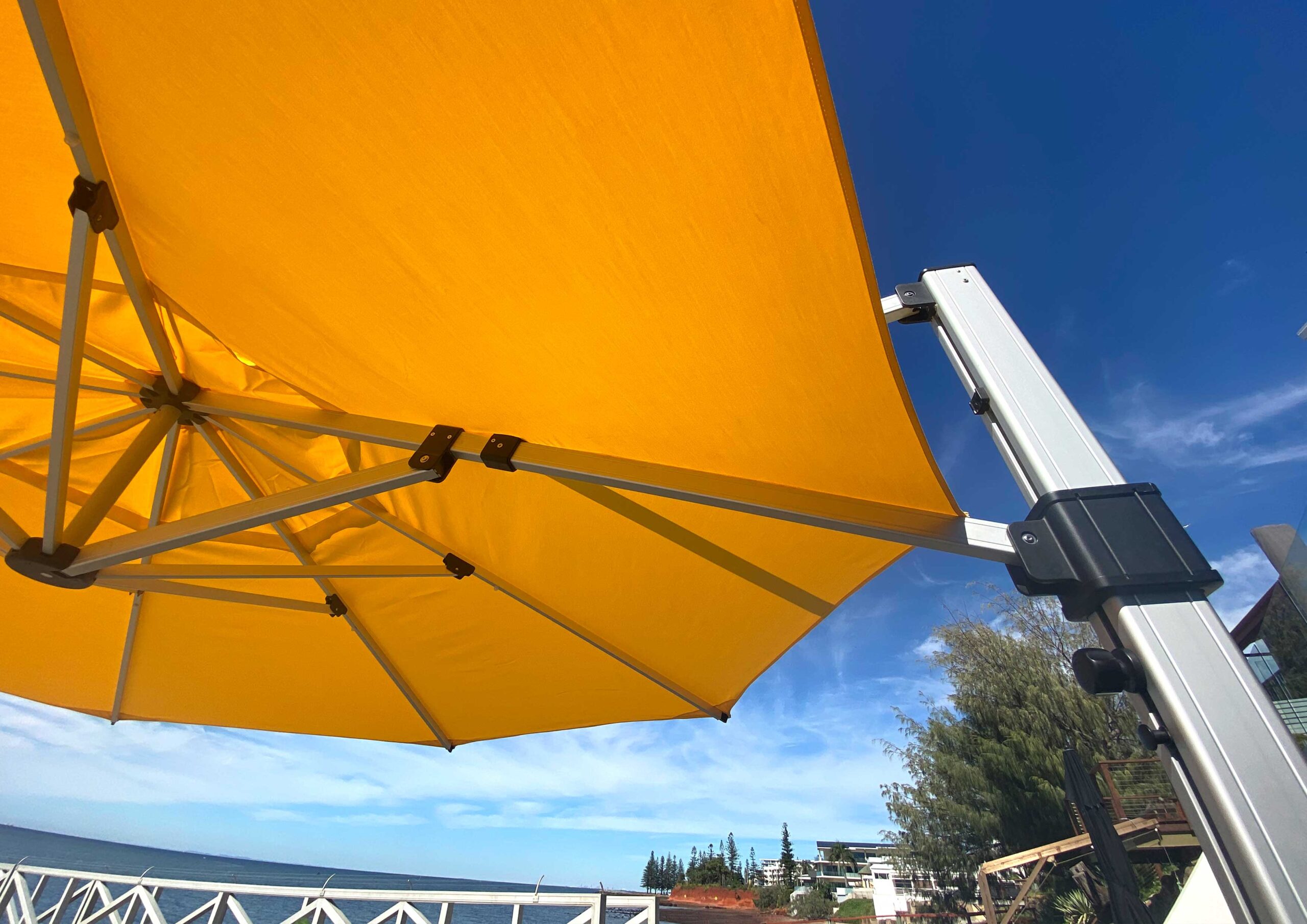

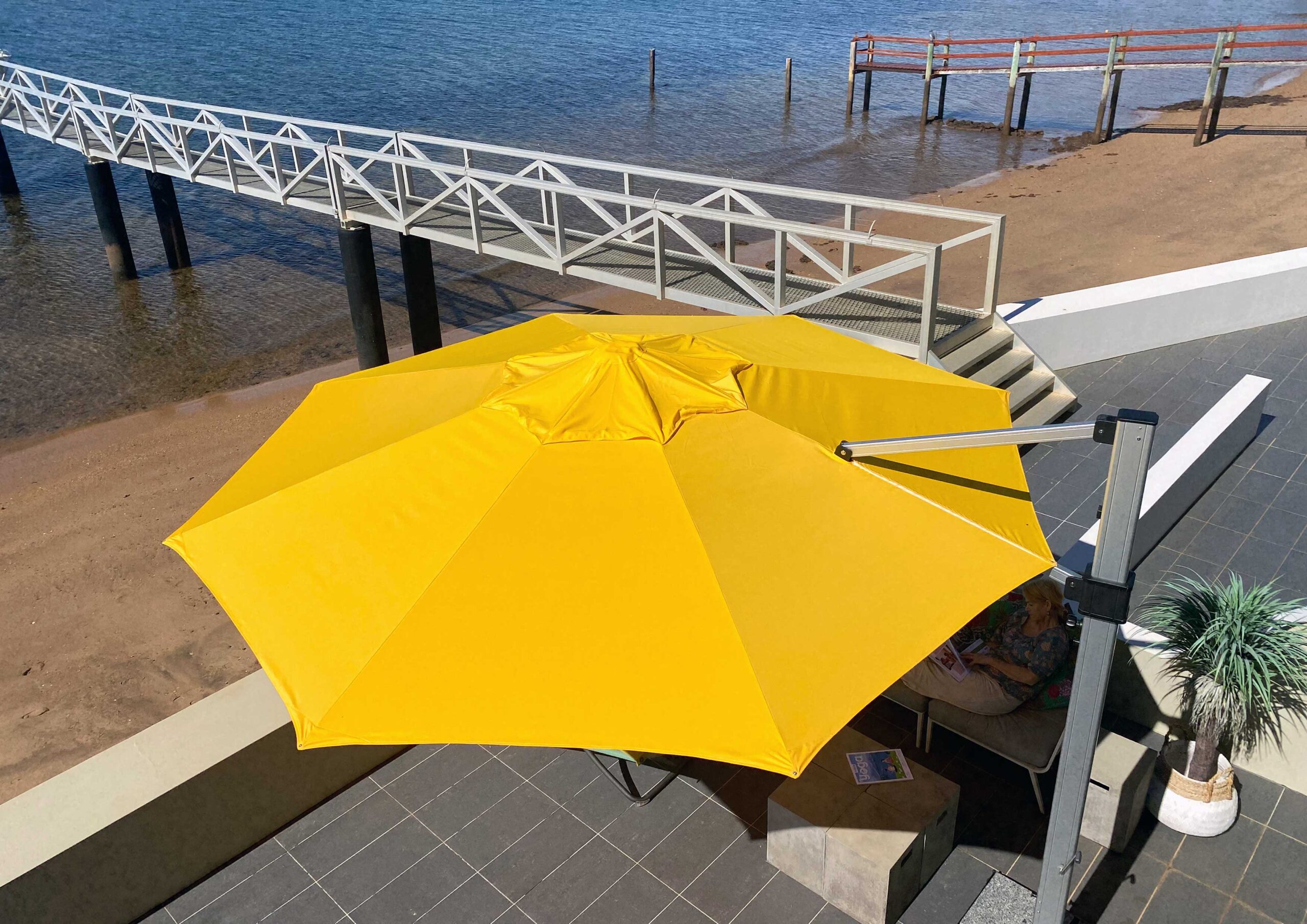

4m Octagonal Cantilever

FROM $4,420

Specifications
Frame: Aluminium | Height Opened: 2.83m | Height Closed: 2.83m | Clearance Opened: 2.20m | Clearance Closed: 80cm | Main Pole: 8.5cm x 12cm | Support Bar: 5.5cm x 3.5cm | Rib Size: 2cm x 3cm | Roof Diameter Open: 4m | Roof Closed: 56cm x 30cm | Packing Box: 25cm x 56cm x 296cm | Frame Weight: 59kg |  Roof Weight: 5kg | Base Plate:  Steel Base with DynaBolts & Square Frame base with 12x Marble Weight Plates (16kg ea. total weight 220kgs)

Fabric
Plain and Printed Fabric Flare Shade Acrylic 260GSM

Warranty
Flare Shade Acrylic 5 Years Fade Resistant | Aluminum Frame 1 Year

Resources
Specifications  |  Instructions  |  Acrylic Fabric Colours  |  4m Template  |  Engineer Certification 4m

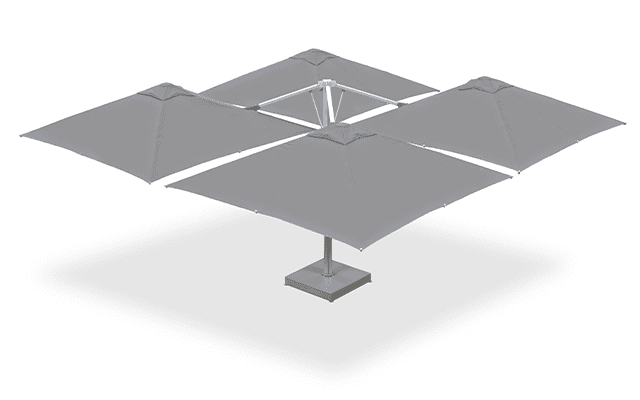

3m x 3m Multi Shade

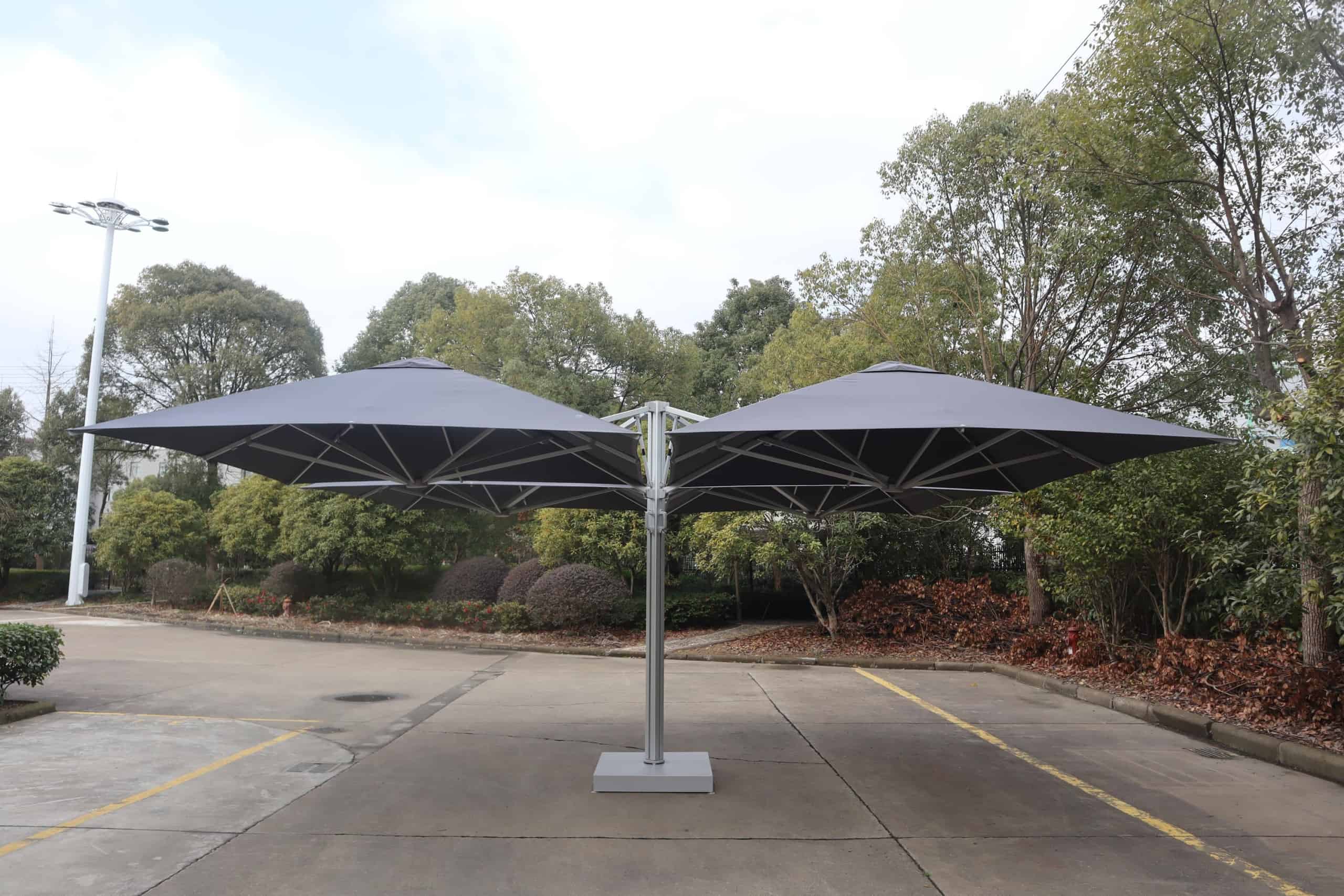

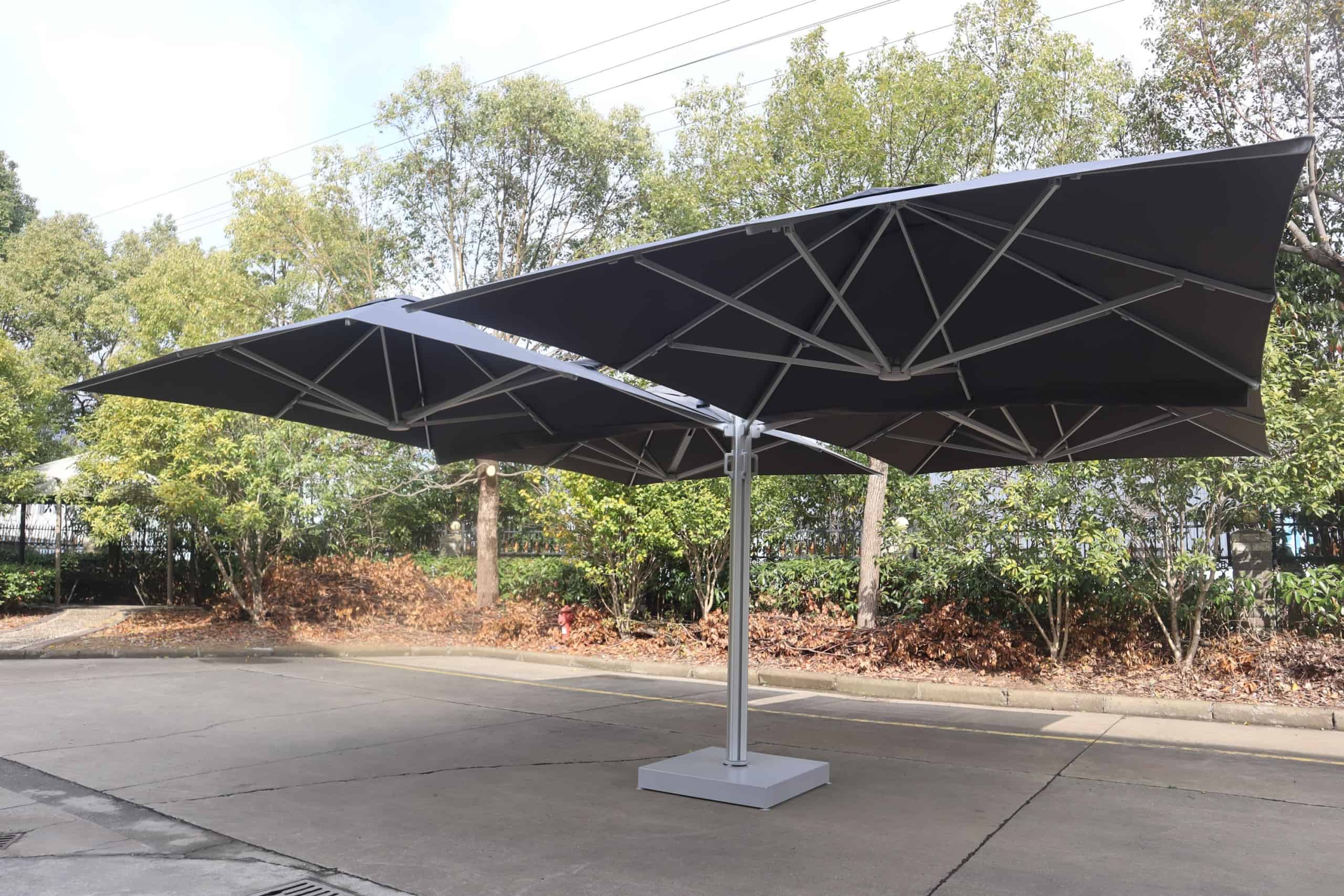

3m x 3m Multi Shade Cantilever

FROM $2,985

Specifications
Aluminium Frame 110mm x 110mm x 2mm  |  Height 2.88m  |  Clearance:2.2m  |  Pole Weight: 14.3kg  |  Pod Frame Weight: 14.5kg (per pod)  |  Pod Fabric: 3.5kg (per pod)  |  Support Bar 25mm x 50mm x 2.5mm  |  Rib Bars 16mm x 28mm x 1.2mm  |  Gas-assisted Opening System  |  Stainless Steel Screws & Rivets

Fabric
Plain and Printed Fabric Flare Shade Acrylic 260GSM

Warranty
Flare Shade Acrylic 5 Years Fade Resistant | Aluminum Frame 1 Year

Resources
Specifications  |  Instructions  |  Acrylic Fabric Colours

pod example

Printing and Fabrics

Custom Printing
custom print cantilever umbrella
custom printing title 300px
We offer custom printing on a wide range of products. Don’t forget to checkout our available print packages!
Standard Fabric Colours
grid display cantilever acrylic

Flare Shade Acrylic

The Flare Shade Acrylic is specifically imported for the Cantilever range of umbrellas. This acrylic fabric is 260GSM and is available in 11 colours.

> Flare Shade Acrylic PDF

Printing Process

Screen Printing

umbrella screen printing method

Screen Printing is the process whereby ink is forced onto the fabric through a mesh screen. Screen printing is ideal for simple designs that are produced in higher quantities. Extreme Marquees charges the same price for all printing methods. The best printing method for your order can be determined with our production team after you have placed your order and submitted your design.

UV Printing

uv printing method umbrella

UV printing is a form of digital printing that uses ultra-violet lights to dry or cure ink as it is printed. As the printer distributes ink on the surface of the marquee fabric, specially designed UV lights follow close behind, “curing” or “drying” the ink instantly. The benefits of UV printing are that it is very resistant to fading. With UV printing there is also no restrictions to the number of colours or logos on the design.

Sublimination Printing

sublimination printing method

Sublimation printing, also known as dye sublimation printing involves the use of a digital printer to produce a print on sublimation transfer paper. The sublimation paper is then placed into a heat press with the marquee fabric and exposed to a temperature of 200 degrees celsius. The artwork is then transferred from the paper to the marquee fabric.

Instruction and Promo Videos

Learn what makes our Flare Shade umbrellas the best on the market! As well as how to correctly and safely set them up!

Video
Play Video
Video
Play Video
Leah Ann Ellis
Leah Ann Ellis
a month ago
Extreme Marquees were super easy to work with. A quote was quick and very reasonably priced and delivery was as per the timeframe provided. Our order was ready for shipping during a period when no one was going to be home so the Extreme Marquee team coordinated shipping at a date nominated by me and held the product at their office in the meantime, it was seamless. We were very happy with the quality product that was delivered. I would definitely use Extreme Marquees again in the future.
Fez Fezcon
Fez Fezcon
a year ago
I purchased a 6m x 3m Q7 heavy duty marquee and will be buying another one next year. I received excellent service over the phone and email follow-up. I was guided through from purchase in QLD to delivery in Perth in total confidence. I have also received great feedback from others about the sturdy solid structure. Extreme Marquees are the go to product if you want next level quality.
Carla Darla
Carla Darla
7 months ago
Extreme Marquees were fantastic to deal with from start to finish. From the very first email communication through to the design process and receiving our marquee, everything was seamless. We couldn’t be happier—the service, communication, and finished product were all outstanding. The marquee itself is excellent quality, and we honestly can’t fault a thing. It was super easy to order, and delivery was impressively fast. We highly recommend Extreme Marquees!
Matthew Curd
Matthew Curd
6 months ago
Extreme Marquees were excellent to deal with! From the initial enquiry on the phone to the artwork assistance and fast delivery, we couldn’t have asked for better service! The quality is outstanding and we’re very proud of our new look market stall!
Glam Beauty
Glam Beauty
a month ago
HIGHLY RECOMMEND, this company was highly recommended to us by friends that have had the same marquee for camping for 5yrs and never had an issue. We recently purchased the X7 Tectonic Series Marquee 4m x 6m, Delivery was extremely fast to Sydney NSW. But unfortunately, there was an issue with the roof there were holes in it, contacted Extreme Marquees and provided photos and a customer service representative from the warehouse was very helpful and sent a replacement roof out immediately, it arrived within 3 or 4days. At Christmas, we went on holidays and used it for the first time, and noticed friends of ours that had purchased the same one and were also on holidays using it for the first time, theirs had an extra protective strip on roof seams to prevent breakage, so my husband took photos of their roof and our roof and sent an email out to Extreme Marquees asking if our roof should of had this when we purchased it, and the customer representative stated that it should of had this extra protection and that it was a manufacturing error and that they would be sending another replacement roof. Extreme Marquees contacted us a couple of days later to let us know upon checking the warehouse stock of our roof and colour they also had the manufacturing error, so they had a new one sent directly from the manufacturer it arrived within 2wks, we have not used the roof yet as we were back from holidays but did open the box to check if the protective strips were on seams and they definitely were. Couldn't be happier with the fantastic customer service and experience with the team, they go above and beyond, and we were extremely happy with our marquee for our caravan/camping trip, it was the first year in 15yrs of camping we haven't had shelter issues it was fantastic, we stayed completely dry and it withstands the wind, best decision we have made purchasing from Extreme Marquees, wish we knew about them sooner would of saved a lot of arguing and $$ buying all different gazebos that didn't last our 3wk trip or having to take down in the middle of the night because of wind or broken, absolutely highly recommend Extreme Marquees.

Ready to find out more?

The Flare Shade 3.5×3.5 and 4×4 metre cantilever umbrellas are the most versatile shade solutions on the market. These cantilever umbrellas have been specifically designed so you can move your shade to where it’s needed. The canopy can rotate through a full 360 degrees, allowing the structure to be positioned exactly how and where it’s needed.

When the sun moves, so can your cantilever umbrella. To fine tune the position of your shade, the canopy can be tilted on its other axis. As the sun goes down the canopy can be tilted to provide block-out from another direction.

The 3.5×3.5 and 4×4 cantilever umbrellas are manufactured from polished marine grade aluminium and the canopies are crafted from Flare Shades own Acrylic high performance, fade resistant textile. Custom branding is also available. Our graphics team can assist you with artwork templates through to logo design if needed. The Flare Shade 4 metre diameter octagonal cantilever shade solution is as stunning as it is stylish. High-quality, high-performance textiles will stay looking bright and colourful for years. The 4 metre Flare Shade cantilever umbrella can be rotated, and its canopy tilted to provide shade exactly where needed. The frame is made from robust, high grade marine rated aluminium. It is perfect for your home poolside area or restaurants and cafes in need of flexible shade options. Custom printing on all canopy panels is available.
